Problem
Bring capture and information access into hands-busy field workflows.
Historical custom field-operation project
Falcon 007 Pro — Historical Field Project
Falcon 007 Pro is a historical custom field-operation smart-glasses project reference, including face-recognition and vehicle-flow recognition experience. It is not an overseas-ready product and cannot be supplied as evaluation samples. Similar requirements need a new ODM project with NRE, development time and project budget.
All technical details below describe historical configurations, not standard overseas specifications. Similar recognition, public-sector and sensitive-data workflows require a new ODM project, feasibility review, customer approval and regional legal and privacy assessment.
Historical configuration
1.3MP reference camera- Field kit architectureGlasses, near-eye display, inline controller and a Type-C link to an approved phone, terminal or external compute.
- Reference display1280×720 HD near-eye display, 34° field of view and ≥82% reference optical transmittance.
- Optional thermal moduleProject-configured 220×160 plug-in thermal imaging module.
- Deployment controlsRecognition and public-sector functions require regional, privacy, legal and customer review.
PRODUCT FIT & DEVELOPMENT SCOPE
Falcon 007 Pro: from user need to product scope
Solution
Falcon 007 Pro is a historical field-operation project reference combining a camera, near-eye display and controller linked to compatible external compute. It is not an overseas-ready product; the original systems are not available for sample dispatch or testing.
Target User
Enterprise field-system developers and integrators defining a new product and deployment workflow.
Application
First-person media and project-specific field assistance. Historical recognition workflows do not establish standard overseas functionality; any new recognition scope needs intended-use, consent, privacy and regional review.
Customization
Start a new ODM scope covering compute, interfaces, software, accessories and acceptance criteria. NRE, development time and project budget are agreed for the new project; historical specifications are not performance commitments for it.
Physical product photographs
A closer look at the reference hardware.

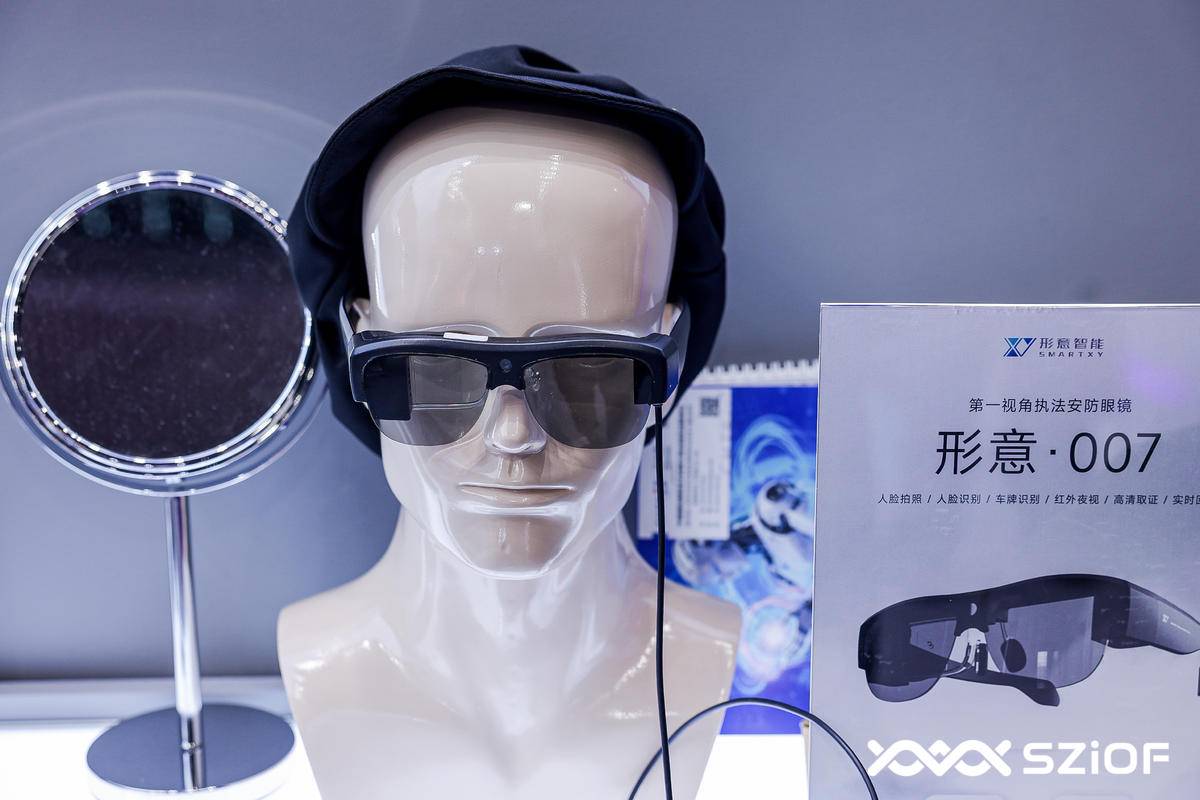

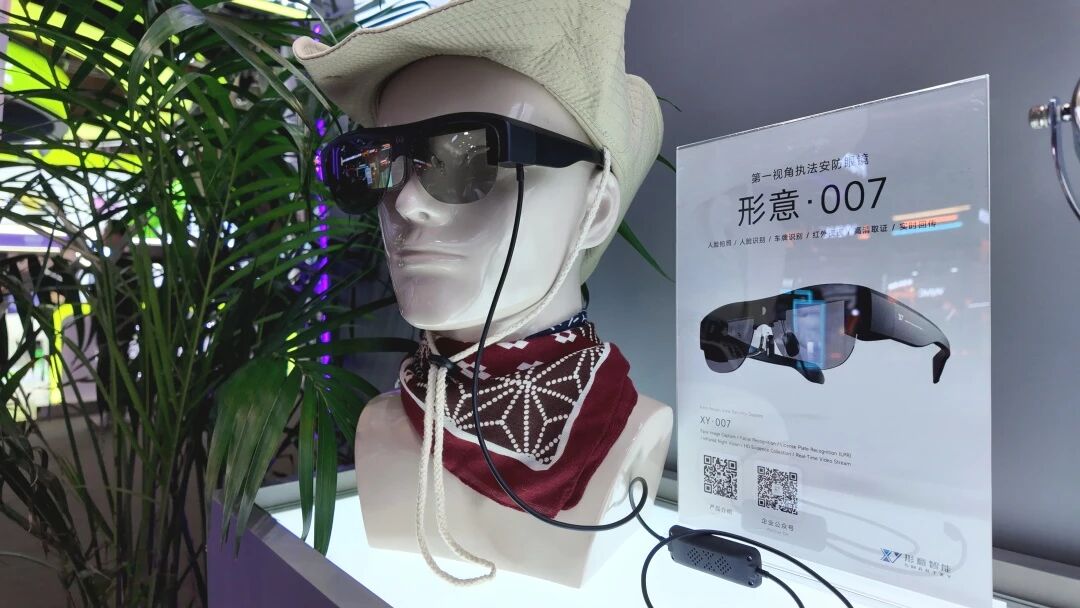

Supplied photographs of the historical Falcon 007 Pro reference hardware on display.
Exhibition signage is part of the original photographs; it does not change the historical configuration and ODM boundaries described on this page.
Historical project overview
A modular field kit with the compute load kept off the head.

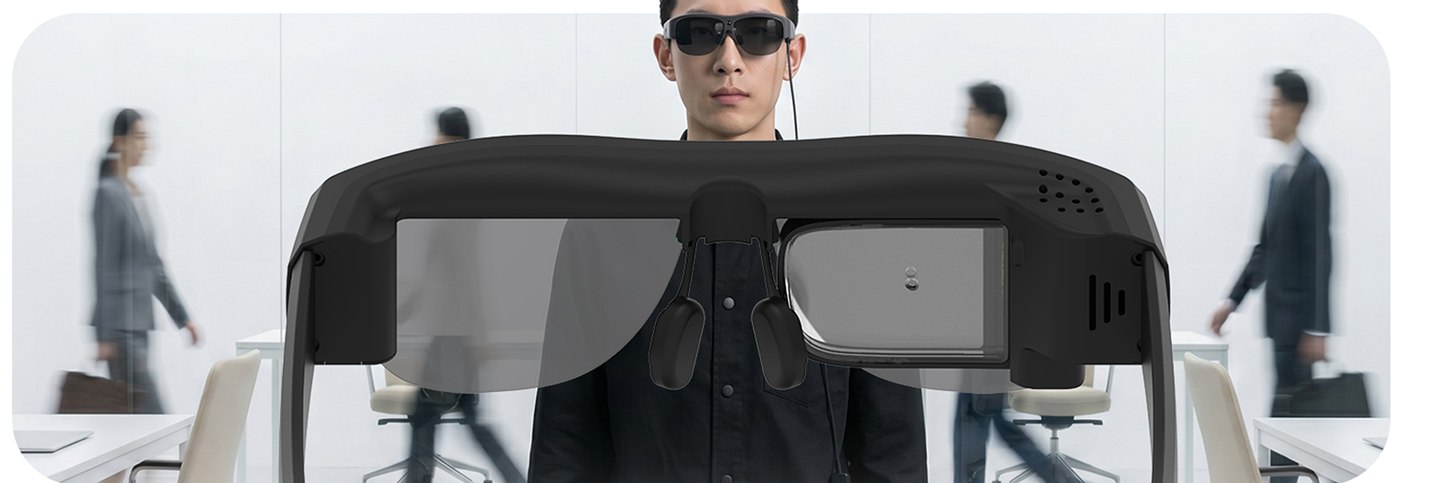

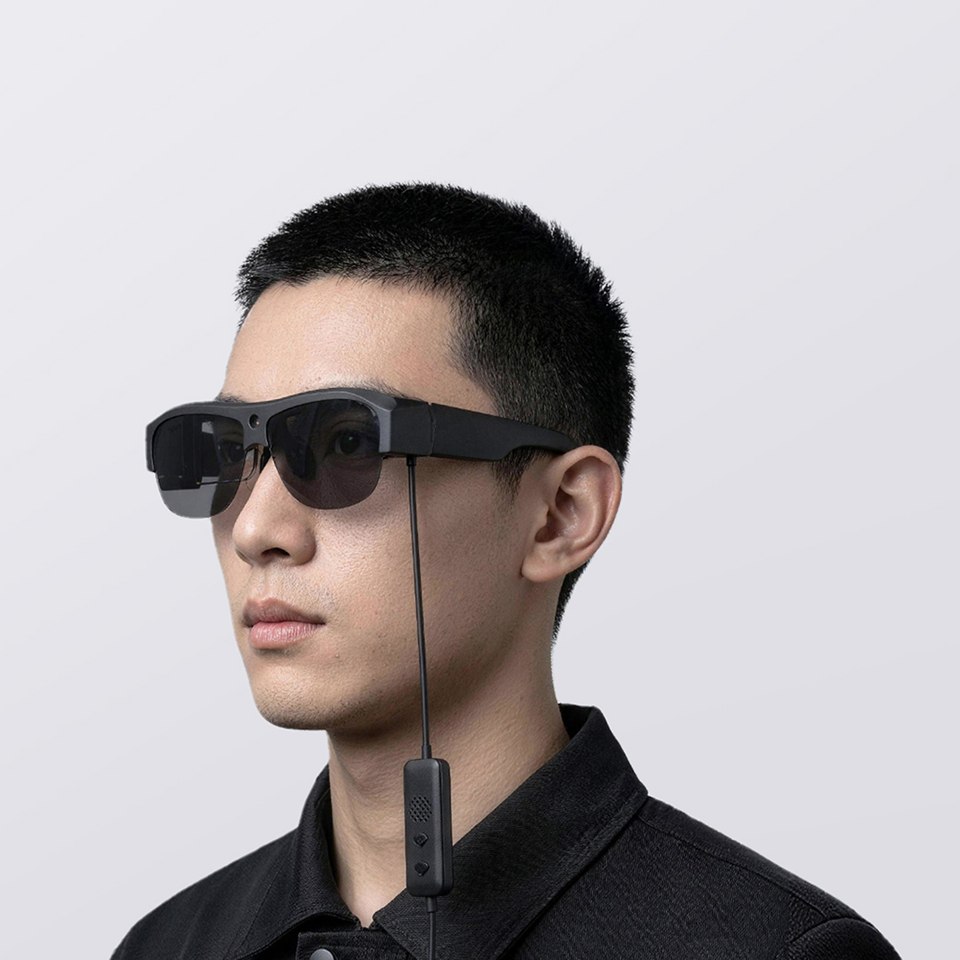

The historical configuration combined a camera, monocular near-eye display and inline controller with a Type-C link to a compatible phone, terminal or external compute module for hands-free information display, first-person capture and project-specific assistance. Similar requirements need new ODM development.
- 1.3MPReference camera configuration
- 1280×720HD near-eye display
- 34° FOVHistorical reference field of view
- ≥82%Reference optical transmittance
- 58 gHistorical reference device weight
- Type-CLink to approved external devices
Capture and streaming
First-person capture with project-gated recognition integration.
The historical project sheet describes a Falcon capture-and-recognition workflow and first-person audio/video transfer through a compatible phone or professional terminal. The project references experience in face recognition and vehicle-flow recognition. Similar workflows require new software, model, network and customer-integration development; this historical system is not available for sample testing.

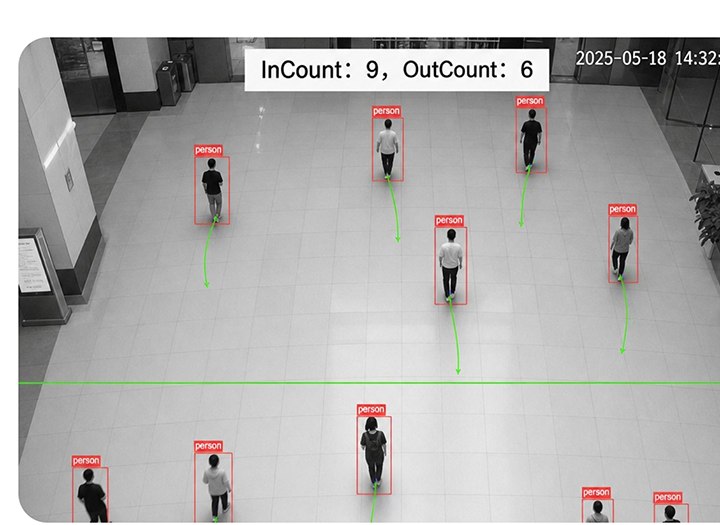

Capture and optional recognition
The sheet lists stabilization-assisted capture plus optional face and license-plate recognition. It gives 20–30 face captures per second and 3–5 recognition results per second as reference figures, not guarantees; project hardware, models, scene conditions and the test method must be validated.

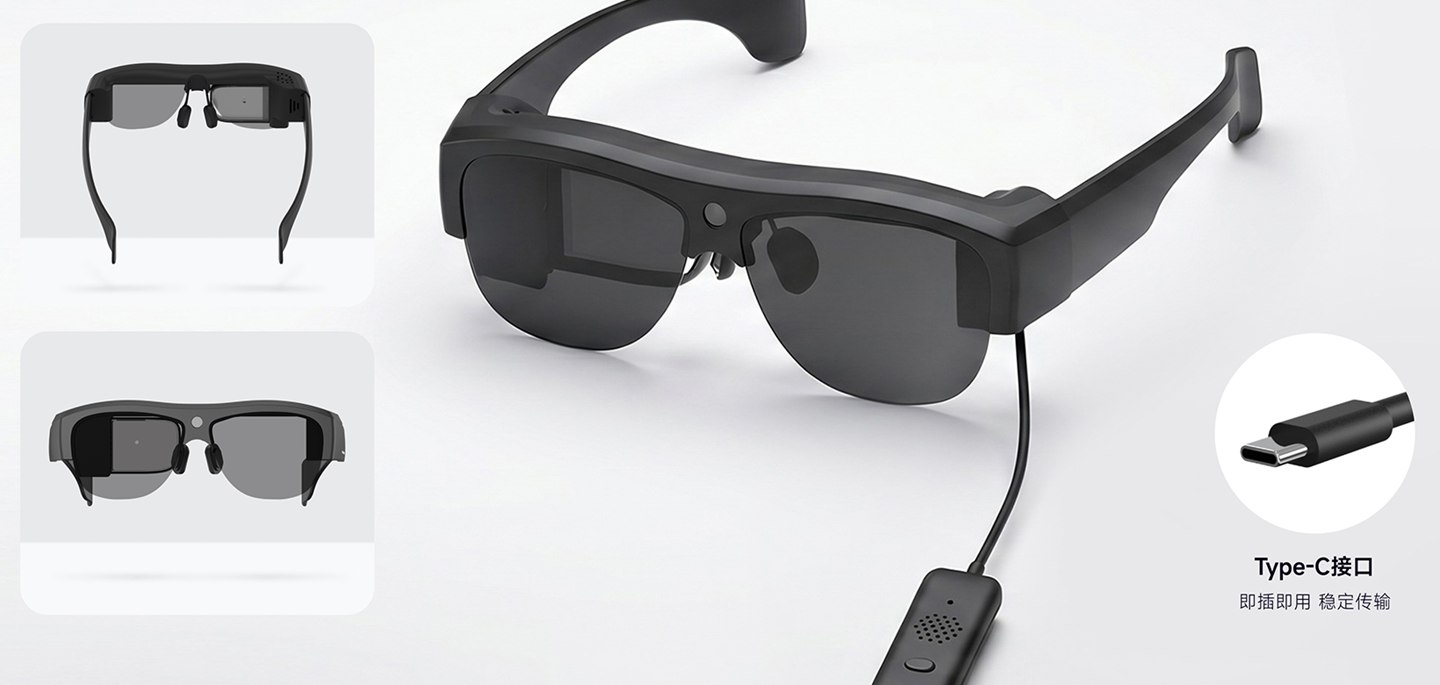

First-person audio and video
A Type-C link supports deployment-specific connection to a compatible phone, terminal or compute module for first-person capture and remote coordination. Application support, network quality, storage, security controls and evidence requirements are integration-specific.
Deployment boundary: face, identity, license-plate or public-sector functions are not enabled universally. They require a permitted use case, customer approval, regional legal and privacy review, data-retention controls and project acceptance testing.
Display and expansion
A high-transmittance near-eye display with an optional thermal module.
The historical reference configuration lists a 1280×720 HD display with a 34° field of view. The supplied project sheet adds ≥82% reference optical transmittance and a project-configured 220×160 plug-in thermal imaging option. These are not standard specifications for a current overseas product.
Power and wearability
External compute and power support longer field workflows.
The historical external-compute architecture was intended to reduce the processing load carried on the glasses. Its reference device weight is 58 g; this is a historical configuration figure, not a standard specification for a new overseas project.
The supplied sheet states more than 4 hours of full-function runtime with an external 5000mAh battery under reference conditions. Runtime is not a fixed guarantee and varies with the compute load, display, camera, optional modules, network, battery condition and environment.
Application scenarios
Historical field scenarios for new ODM discussion.
The historical project visuals illustrate operating contexts. Similar requirements call for a new ODM project; functions, users, data flows, integrations, development fees, schedule and approvals are defined during project scoping.
Public venue operations
Hands-free information and first-person capture for approved transport-hub, event and facilities workflows.
Field patrol and inspection
Reference prompts, documentation and remote assistance for authorized field teams and inspection routes.
Night search support
Optional thermal viewing and first-person coordination where validated for the environment and operating procedure.
Mobile command coordination
First-person audio/video links for approved remote assistance and command-support integrations.
Scenario imagery is illustrative and does not document a customer deployment, endorsement or performance result. Recording, recognition and data processing must follow applicable law, customer policy and approved operating procedures.
Reference specifications
Historical configuration and engineering references.
These values preserve historical project configurations from the supplied sheet and product record. They are not standard overseas specifications or a sample offer. Similar requirements need a new ODM project with NRE development fees, development time and project budget; configuration and acceptance criteria are assessed for that new scope.
- Camera
- 1.3MP reference camera configuration.
- Near-eye display
- 1280×720 HD, 34° field of view and ≥82% reference optical transmittance.
- Reference device weight
- 58 g in the historical reference configuration; a new ODM design may differ.
- Connection and compute
- Type-C link to a compatible phone, terminal or external compute module.
- Optional thermal module
- 220×160 plug-in thermal imaging module in the historical configuration; a new ODM project requires its own feasibility and performance assessment.
- Reference power and runtime
- External 5000mAh battery; more than 4 hours of full-function runtime under reference conditions.
- Reference capture throughput
- 20–30 face captures per second in the supplied sheet; test conditions and project validation required.
- Reference recognition throughput
- 3–5 recognition results per second in the supplied sheet; model, target, accuracy and test method require validation.
- Audio/video workflow
- First-person capture and transfer through a compatible customer terminal, application and network.
- Recognition boundary
- Optional project integration only; not universally enabled or represented as lawful for every region or use case.
Compliance
Regional requirements for a new ODM project.
Falcon 007 Pro is a historical project reference and cannot be supplied for overseas use or sample testing. The following regional considerations apply when scoping a new ODM project, not as availability claims for this historical system.
| Region / workflow | New ODM scope to assess | Gate before deployment |
|---|---|---|
| EU / GDPR markets | Field-operation architecture with project-defined data-minimization and access-control requirements. | Lawful basis, DPIA where required, DPA, notice or consent, retention policy, biometric-function review and customer-controller responsibilities. |
| Public-sector / law enforcement | First-person capture and optional project-specific recognition integration. | Procurement scope, permitted functions, validation method, data retention, audit requirements and legal review. |
| Telecom / media workflows | First-person video, inspection or assisted-operation workflows where customer evidence and privacy notices permit. | Customer approval, network and data-security plan, user notice and regional content policy. |
| General enterprise | Hands-free field inspection, documentation and remote-assistance smart glasses. | Role-based access requirements, device management, storage location and integration-security review. |
FAQ
What does the Falcon 007 Pro project demonstrate? Falcon 007 Pro is a historical custom field-operation project reference, including face-recognition and vehicle-flow recognition experience. Its illustrated hardware, software and reference figures describe historical configurations; they are not standard specifications for a product ready for overseas use.
Can Falcon 007 Pro be used overseas or supplied for sample testing? No. Falcon 007 Pro is a historical custom project reference, not an overseas-ready product. Samples cannot be supplied for testing. Similar field-operation requirements must be evaluated as a new ODM development project.
What is required to develop a similar field-operation project? Similar requirements need a new ODM project with non-recurring engineering (NRE) development fees, development time and a project budget. Share the use case, target region, functional requirements and integration needs. Fees, schedule and deliverables are assessed from the agreed scope; no fixed price or delivery period is promised.
Is every recognition feature enabled by default? No. The historical reference includes optional recognition workflows. A similar new ODM project must define its own functions and region and obtain customer approval and applicable legal and privacy review.
Are the reference capture and recognition rates guaranteed? No. The historical project sheet lists 20–30 face captures per second and 3–5 recognition results per second as reference figures, not guaranteed specifications for a new overseas project. Actual results depend on the model, integration, environment, network and test method and must be validated for any new ODM project.
Is the thermal module standard? No. The 220×160 plug-in thermal module is an option shown in the historical configuration. Inclusion in any new ODM project requires a separate feasibility and scope assessment.
What is the reference runtime? The historical project sheet states more than 4 hours of full-function runtime with an external 5000mAh battery under reference conditions. This is not a runtime commitment for a new overseas product. Actual runtime depends on the workload, modules, network, battery condition and environment and must be validated for any new ODM project.
What name should be used? Use Falcon 007 Pro as the historical project reference name. A new ODM product requires its own agreed name and scope.
Where should compliance requests go? Use the RFQ form to discuss a new ODM project and specify the target region, users, data flow, workflow and project budget. Historical Falcon 007 Pro samples cannot be supplied for testing.
Responsible Deployment
Similar field-operation requirements must be scoped as a new ODM development project for authorized institutional or enterprise use. Customers are responsible for applicable law, privacy requirements, procurement rules and operational policy; the historical Falcon 007 Pro reference is not directly deployable overseas.
Private deployment, access control, audit logging, encryption, storage location and retention requirements can be assessed during new ODM scoping. Development requires NRE fees, development time and project budget. Amounts, schedule, implementation and acceptance criteria depend on the agreed scope.
