BB Medical — 1080P Clinical Display Headset

BB Medical is a project-configured binocular Micro-OLED headset for bringing a compatible video feed into the wearer’s line of sight.

BB Medical is presented here as a display-integration platform. This page does not claim stand-alone diagnosis, treatment, completed medical-device certification or market authorization. Confirm intended use, source compatibility and official documents for every project and region.
Request an integration reviewBack to SKU matrix

Product overview

55° binocular display
  • Reference resolution1920 × 1080 @ 60 Hz binocular Micro-OLED display.
  • Reference video latencyUnder 20 ms in the supplied sheet; the final end-to-end path requires project measurement.
  • Reference weight205 g excluding the data cable.
  • Project-gated integrationSource, adapter, cabling, intended use and regulatory scope are confirmed per deployment.

PRODUCT FIT & DEVELOPMENT SCOPE

BB Medical: from user need to product scope

Problem

Bring a compatible source-video feed into the wearer's line of sight.

Solution

BB Medical is a project-configured binocular Micro-OLED headset. Reference values include 1920 x 1080 at 60 Hz, a 55-degree field of view, 205 g excluding the data cable and external DC 5V/2A power.

Target User

Medical-system developers and qualified integration teams reviewing a defined video-viewing workflow.

Application

Display a compatible video source through the agreed adapter, timing and cable configuration. The product is not presented as a standalone diagnostic or treatment device, and no certification, clinical validation or hospital adoption is implied.

Customization

Define source equipment, connector direction, signal timing, adapters, cable routing, display controls and wearer fit. Agree intended-use validation, electrical and EMC requirements, cleaning compatibility and the evidence required for the target market.

Explore custom AI eyewear development

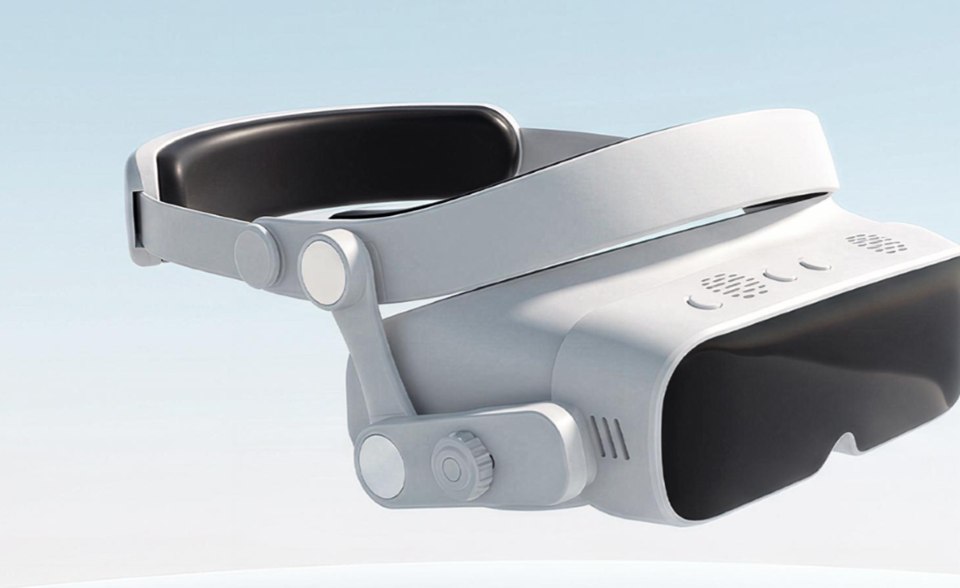

Three-quarter view of the BB Medical headband and display housing
Product rendering cropped from the supplied BB Medical sheet; appearance and included parts remain subject to the final project configuration.
Product overview

A binocular display system built around a configurable video path.

The supplied sheet describes a head-mounted display, signal adapter, cable set and physical display controls. It is intended for integration with a compatible video source while the final interface direction, timing, adapter, cable length and source equipment are defined during project review.

  • 1920 × 1080 @ 60 HzReference binocular display resolution
  • 55° FOVReference field of view
  • Micro-OLEDBinocular display technology
  • <20 msSheet reference video latency
  • 205 gReference weight, excluding data cable
  • DC 5V/2AReference power input
Display and adjustment

Binocular optics with physical positioning and display controls.

The attachment provides reference optical, mechanical and control values. These are product-sheet values, not clinical performance evidence, and should be verified against the final engineering sample.

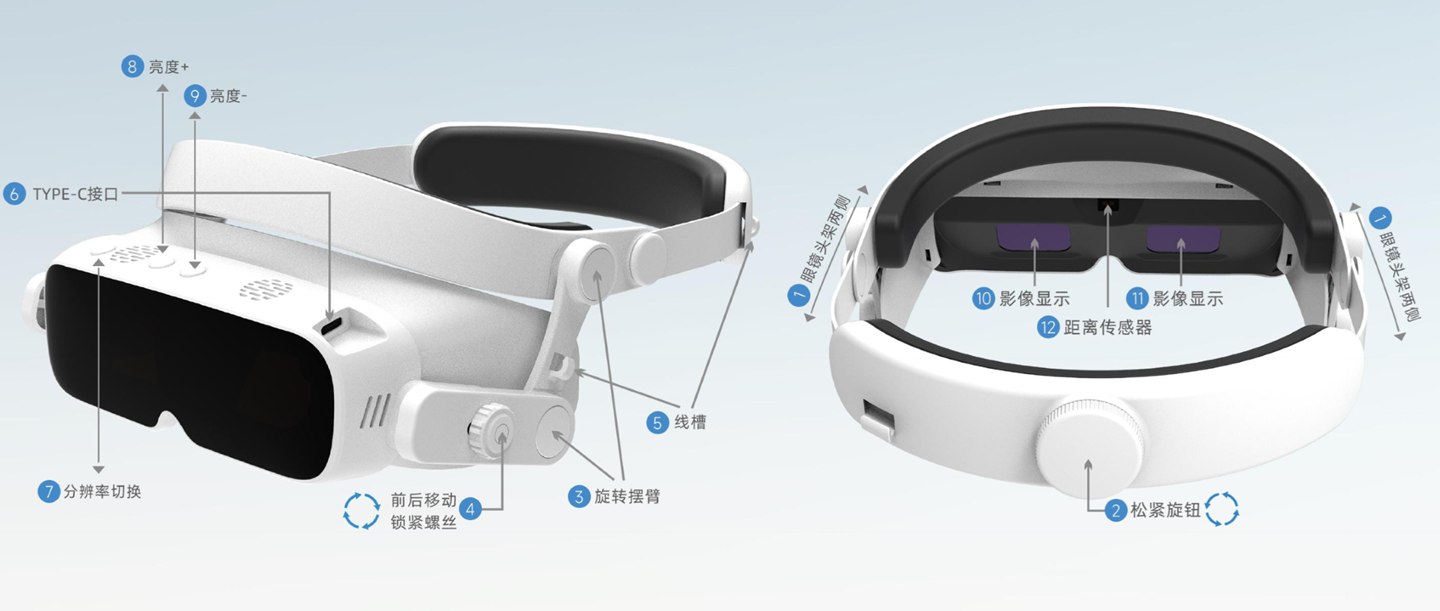

Annotated front and interior views of the BB Medical display headset
Annotated product views from the supplied Chinese sheet identify the display assembly, controls, Type-C port, sensor and mechanical adjustment points.
  • Optical reference: >19 mm eye relief, ≥15 × 9.5 mm eyebox and 64 mm binocular interpupillary distance.
  • Image reference: 50,000:1 contrast, 500 nit eye-side brightness and MTF >0.65 @ 30 lp.
  • Physical controls: three buttons for brightness up, brightness down and resolution switching.
  • Motion sensing: the supplied sheet lists a six-axis gyroscope; application behavior remains integration-specific.
Verification boundary: brightness, optical comfort, image quality and latency depend on fit, source timing, content, adapter, cable and test method. Validate the complete signal chain and user fit before procurement or deployment.

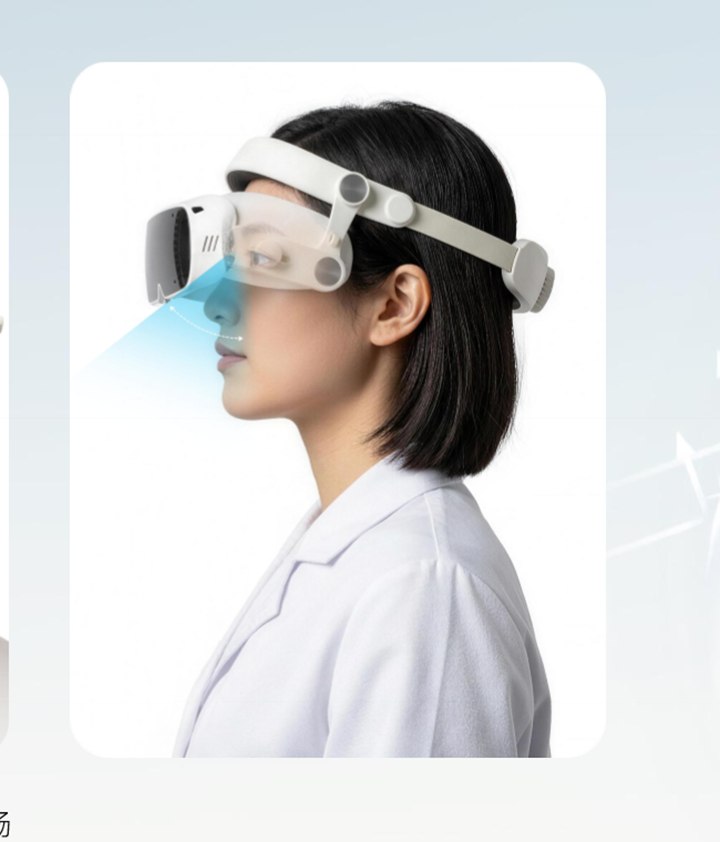

Illustrative wearer shown with the BB Medical headset over eyewear
Illustrative fit image from the supplied product sheet; it is not a documented clinical deployment, endorsement or comfort study.
Fit and handling

A foldable head-mounted form factor with adjustable positioning.

The sheet illustrates a rear head support, tension control and adjustable display arm. A wearer image also shows clearance around conventional eyewear, but individual head shape, prescription glasses, eye position and working posture must be checked with the actual sample.

The reference weight is 205 g excluding the data cable. The light shield is listed as optional, and any statement about continuous-wear duration or ergonomic outcome requires a defined user test rather than product-sheet imagery alone.

Reference specifications

Product-sheet values with the project boundary stated.

Confirm the final configuration, measurement method, connector direction, accessories and acceptance criteria in the quotation and engineering evidence package.

Display technology
Binocular Micro-OLED.
Resolution
1920 × 1080 @ 60 Hz reference.
Field of view
55° reference.
Contrast and brightness
50,000:1 contrast; 500 nit eye-side brightness.
Eye relief and eyebox
>19 mm eye relief; ≥15 × 9.5 mm eyebox.
Binocular spacing
64 mm reference interpupillary distance.
MTF
>0.65 @ 30 lp reference.
Motion sensing
Six-axis gyroscope listed in the supplied sheet.
Reference video latency
<20 ms in the supplied sheet; end-to-end validation required.
Video interfaces
Type-C-to-HDMI input adapter; Type-C DP video output as listed in the sheet.
Power
DC 5V/2A reference input.
Reference weight
205 g excluding data cable.
Reference dimensions
207 mm wide × 257 mm long × 98 mm high.
Temperature range
Sheet reference: −20°C to 70°C operating; −40°C to 80°C storage. Final configuration and test conditions must be confirmed.
Physical controls
Brightness up, brightness down and resolution switching.
Optional accessory
Light shield; availability and package contents require quotation confirmation.

Reference connection path

The attachment shows the headset connected through a signal adapter to compatible source equipment. Confirm the source resolution, signal timing, connector direction, electrical requirements and cable routing before integration.

Reference package shown

Headset, cable clip, HDMI adapter, dual-Type-C data cable, a Type-C cable labelled “charging cable” in the supplied sheet, HDMI data cable and DC 5V/2A adapter; the light shield is optional. Final quantities, lengths and substitutions are controlled by the quotation and BOM.

Medical and regulatory boundary

BB Medical is described as a project-configured clinical display headset. It is not presented here as a stand-alone diagnostic or treatment device, and this page does not imply certification, registration, clinical validation, hospital adoption or a medical outcome.

Before deployment, define the intended use, target market, device classification, source equipment, verification and validation plan, electrical and EMC requirements, cleaning compatibility, risk controls and official evidence package.

FAQ

What display does BB Medical use? The supplied product sheet lists a binocular Micro-OLED display, 1920 × 1080 @ 60 Hz reference resolution and a 55° field of view.

Is the under-20 ms video latency guaranteed in every setup? No. Under 20 ms is a reference value in the supplied sheet. End-to-end latency depends on the source, adapter, cable, signal mode and integration, so it must be measured in the final project configuration.

What is the BB Medical reference weight? The supplied product sheet lists 205 g excluding the data cable. Final weight can vary with the selected shield, cable and project configuration.

How does BB Medical connect to a video source? The supplied sheet lists a Type-C-to-HDMI input adapter and Type-C DP video output. Source timing, connector direction, adapter, cable length and compatibility must be confirmed for the target equipment.

Is BB Medical presented as a certified diagnostic or treatment device? No. This page describes a project-configured clinical display headset and does not claim stand-alone diagnosis, treatment, certification or market authorization. Confirm the intended use and official documents for each target market and project.
