POSITIONING
Consumer-style AI camera eyewear with ODM-customizable form factors, dual-chip architecture, fast charging, and privacy-first hardware. K900 has no AR display — it should not be mixed with AR display products.
PRODUCT FILM
See K900 in motion.
A closer look at the K900 camera-and-audio platform, its eyewear-first form and everyday interaction experience.
PLATFORM PILLARS
Fully loaded. All-day wearable.
01
Sub-40g Frame
All-day wearability with acetate, TR90 or titanium frame options — eyewear-first ergonomics, engineered backwards from the wearer.
02
Sony 13MP IMX258
Flagship first-person POV capture — 1080p @ 30fps video with EIS stabilization and HDR for daily records, sports and travel.
03
5-Mic Array + Adaptive ANC
AI noise reduction and cinematic call clarity. Stereo dual speakers deliver open-ear audio without blocking situational awareness.
04
Dual-Chipset AI Brain
MediaTek MT6765 Android compute + Bestechnic BES2700H audio/BT — balancing camera, audio, connectivity and wearable power efficiency.
05
Pogo-Pin Fast Charging
10 minutes to 50%, 30 minutes to 95%. USB Type-C with pogo-pin contact charging for dock and case ecosystems.
06
Quad-Mode Interaction
Voice, touch, button and wear-detection — four input modes so the assistant is always one gesture away, hands-free when it matters.
07 · LIVESTREAMING
Real-time video and audio
Livestreaming transmits first-person video and audio over the internet to an audience in real time—supporting remote assistance, field collaboration and POV broadcasting through partner solutions.
HARDWARE · POWER

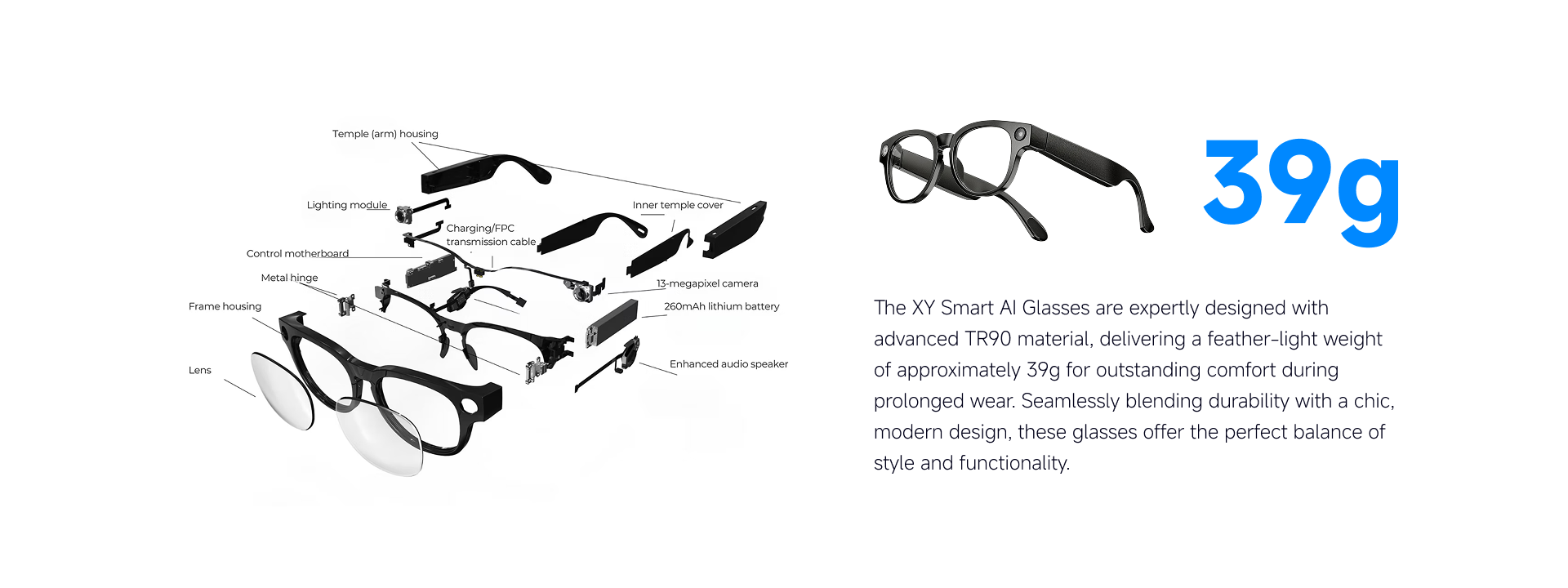

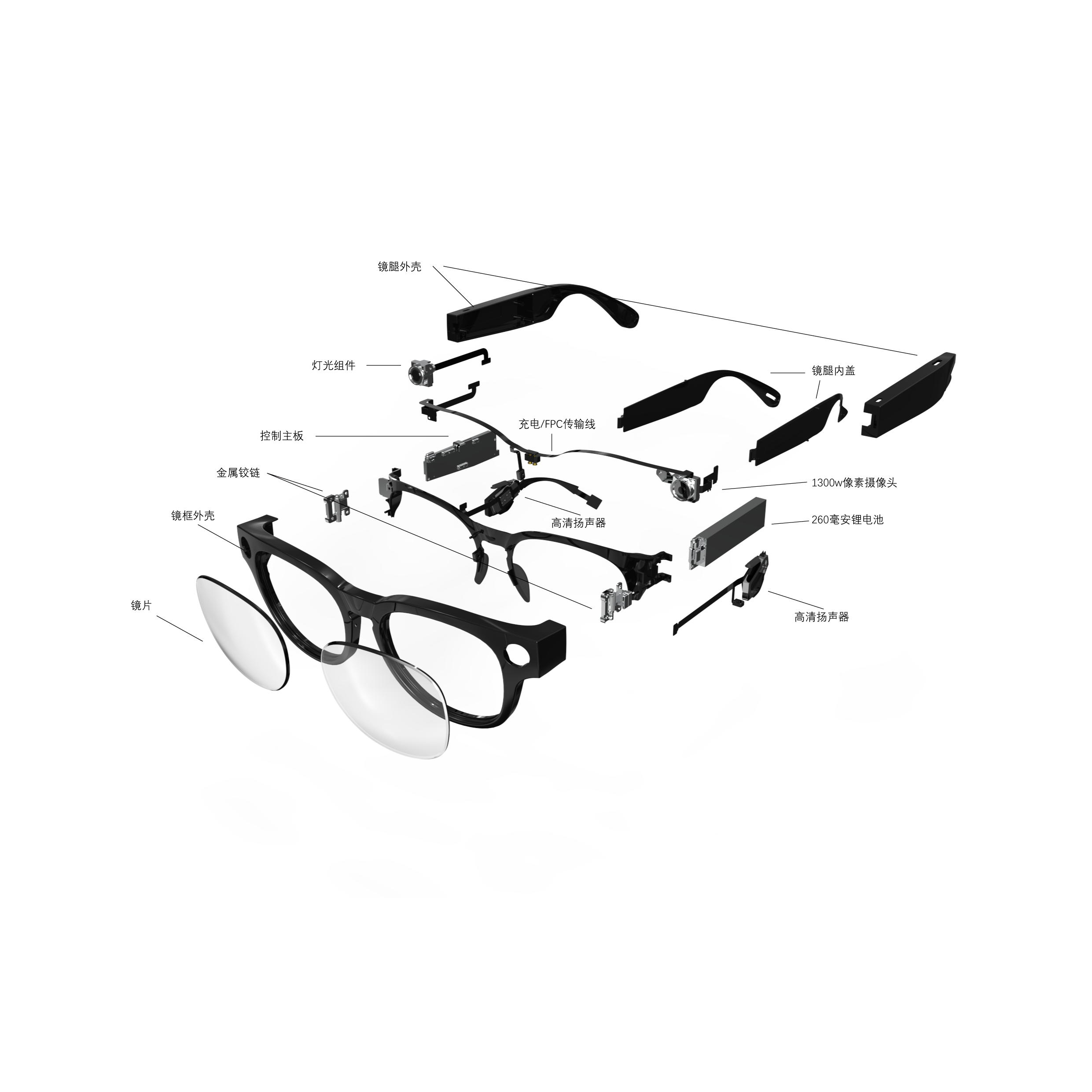

Inside a 39 g camera-and-audio platform

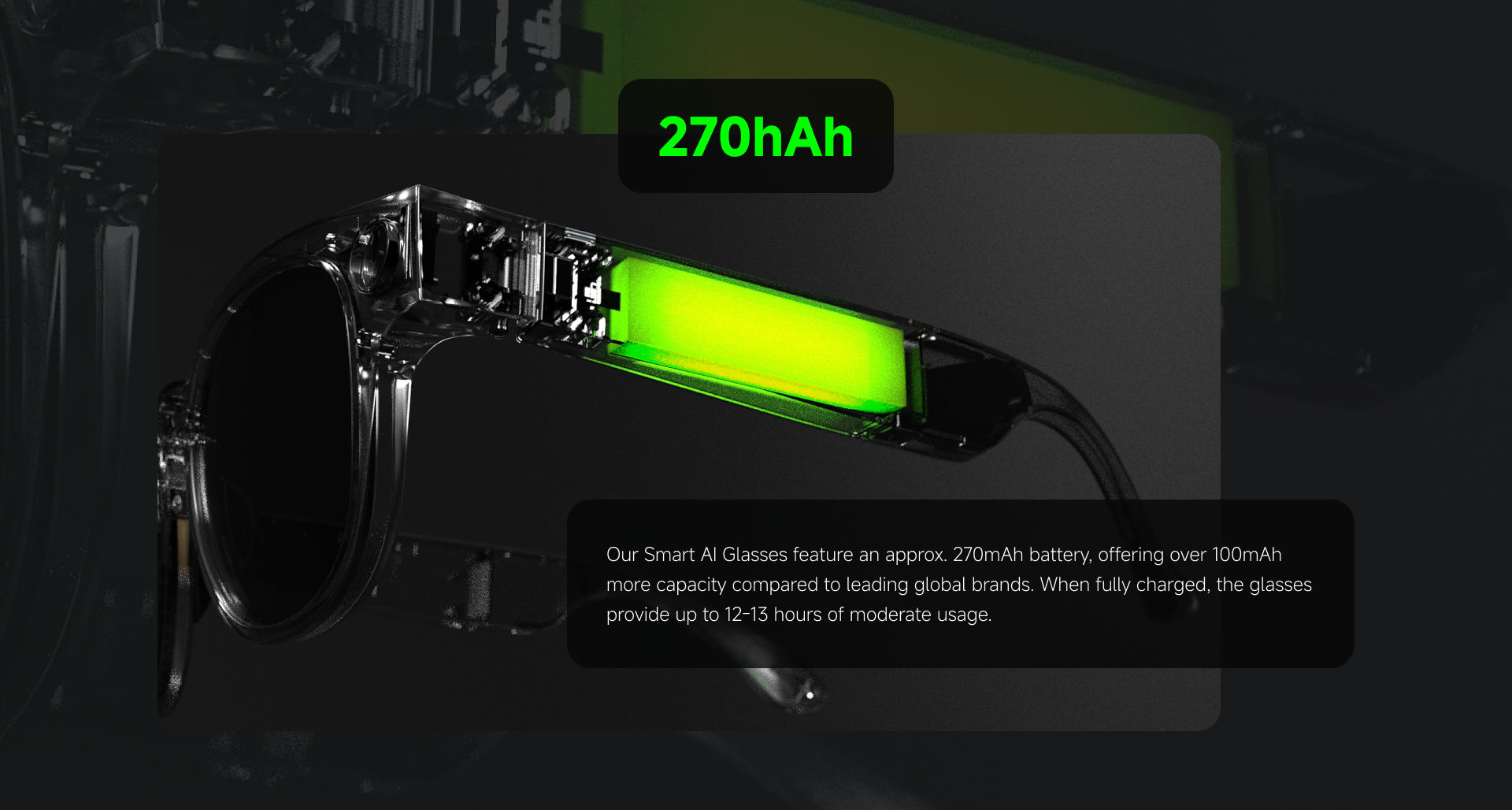

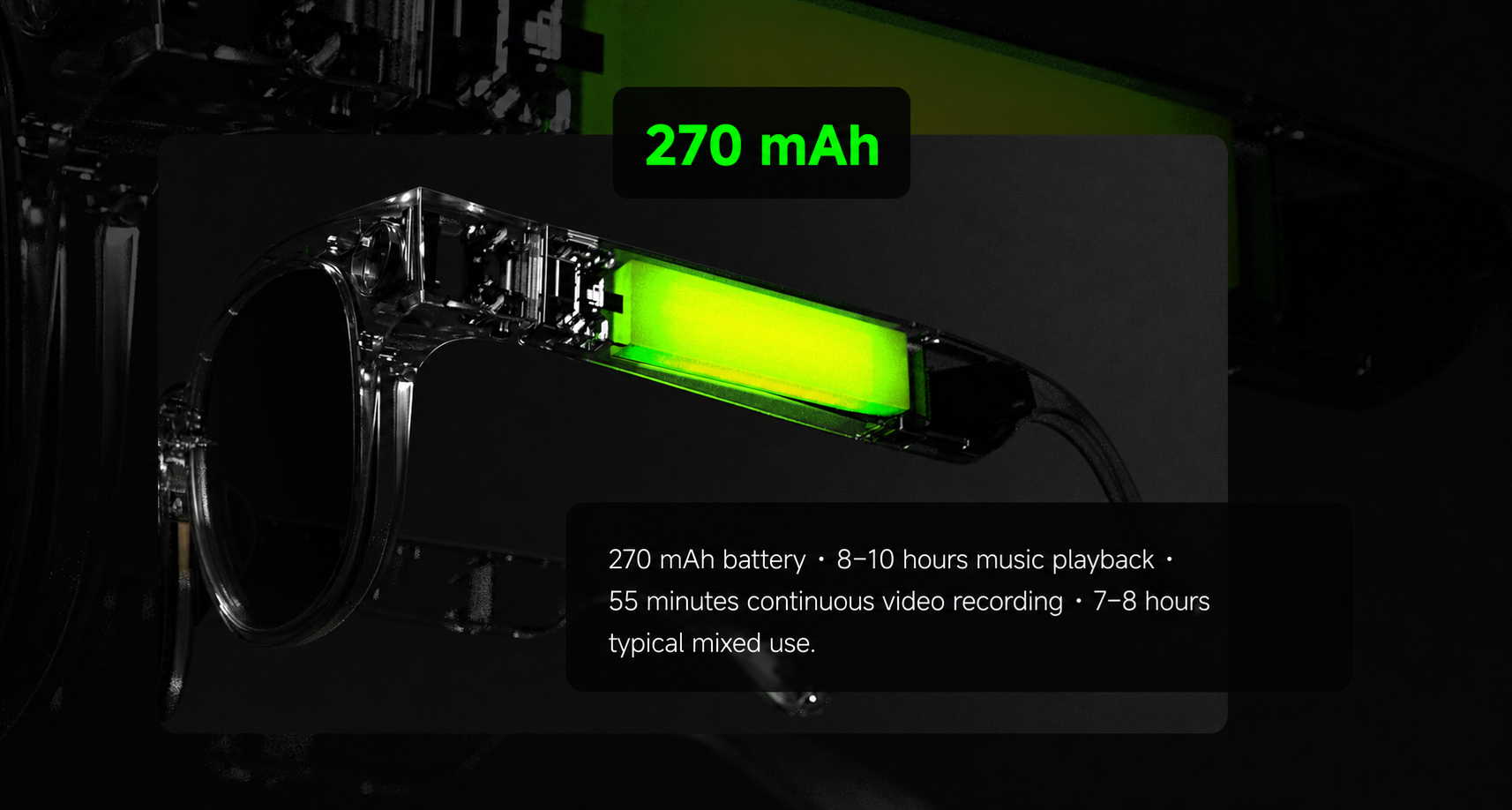

A dense wearable architecture combines Sony 13 MP imaging, open-ear audio, controls and a 270 mAh battery. The visuals below have been aligned to the current K900 public specification.
39g
Dense wearable engineering, without the bulk
Shown in a TR90 reference configuration, K900 weighs approximately 39 g. Frame materials, colors and finishes are available through partner programs.
- Sony IMX258 · 13 MP
- 270 mAh battery
- 5-microphone array
- Stereo open-ear speakers
- Control motherboard
- Charging / FPC cable
- Metal hinge
- Frame housing and lens
01 · AI SHOOTING
First-person capture for how people actually live
Photo and video from the wearer's point of view — daily records, sports, travel, meeting notes and hands-free object recognition. The Sony IMX258 sensor shoots 1080p with electronic stabilization and HDR, so the footage keeps up with real life.
- →Recorded video: 1080p @ 30fps · EIS · HDR first-person capture
- →Livestreaming: real-time first-person video + audio over the internet
- →Hardware-linked white privacy LED — recording is always visible to others
- →32GB ROM + 2GB RAM on-device storage and compute
LIVELIVESTREAMING · REAL-TIME VIDEO + AUDIO
Share the wearer's point of view as it happens.
K900 supports livestreaming—the real-time transmission of video and audio over the internet to an audience. The camera and microphone array provide the first-person media endpoint, while the final streaming workflow, service connection and audience experience are defined by the partner application.
Livestreaming availability and performance depend on the partner app, service configuration, network conditions and regional requirements. No specific platform, transport protocol, livestream resolution, latency or runtime is stated for the K900 reference configuration. Program operators are responsible for notice, consent, access control and applicable privacy and data-protection obligations.
02 · OPEN-EAR AUDIO
Hear the assistant. Hear the world.
Five microphones with adaptive AI noise reduction capture clear voice in real environments; stereo dual speakers play music, calls and assistant responses without sealing off the ears — awareness stays intact on the street, on the trail, in the meeting room.
- →5-mic array · adaptive ANC · cinematic call clarity
- →Stereo dual speakers (AAC 0820) · open-ear directional audio
- →8-10 hours music playback · 7–8 hours typical mixed use
EVERYDAY WEAR
Eyewear that fits into everyday life.
The 39 g K900 reference platform keeps camera capture, open-ear audio and companion-app interaction inside a familiar optical silhouette—ready for reading, commuting and hands-free daily workflows.
03 · AI AGENT INTEGRATION
An LLM-agnostic stack, built for your AI

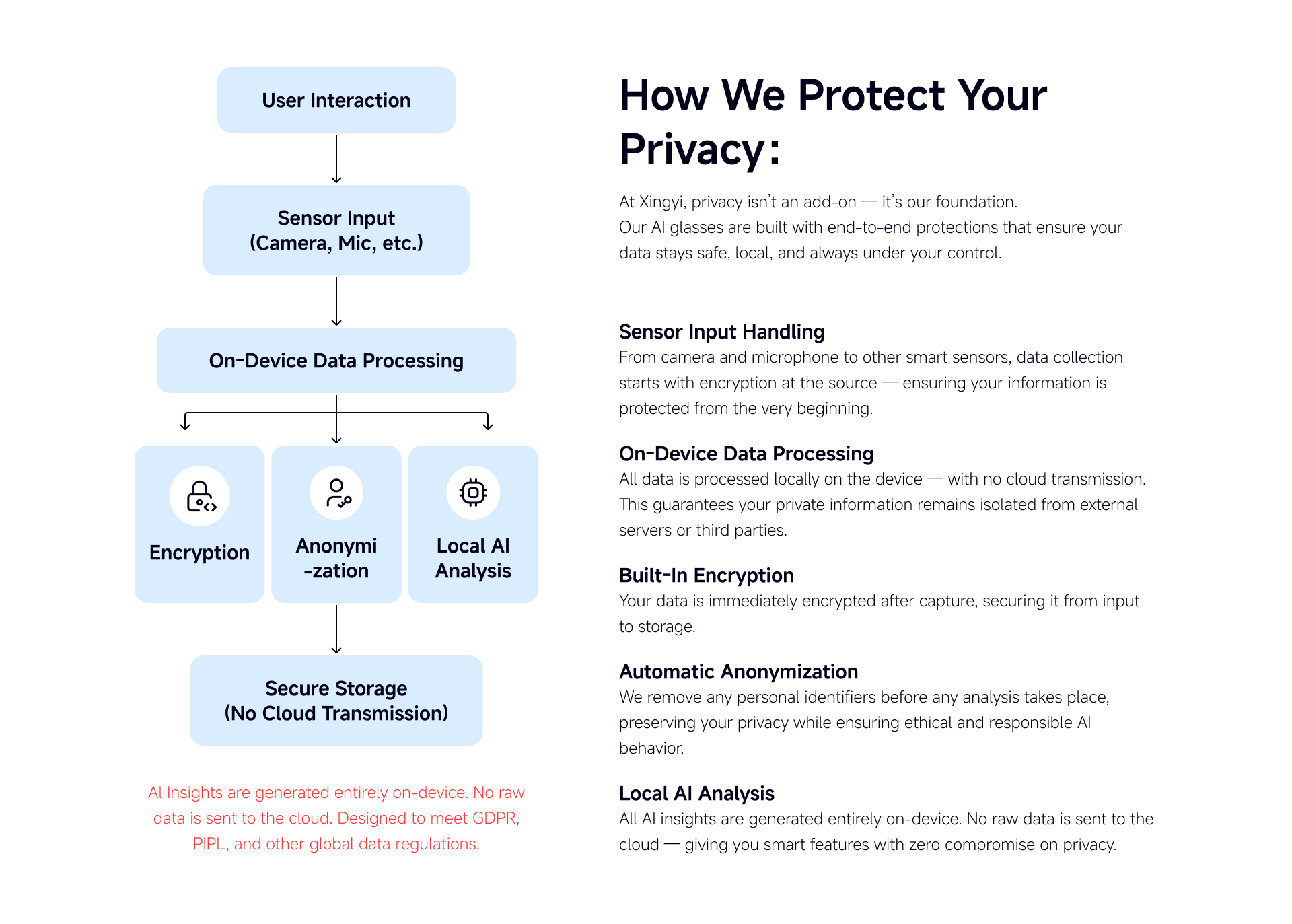

Device-side capture, audio and connectivity stay local; AI assistant and AI agent workflows integrate through partner apps and mainstream cloud AI services. The stack is LLM-agnostic with cloud + on-device dual-mode support, OTA updates, and third-party model loading — your brand, your agent, your experience.
A customer-customized K900-derived build in MediaTek's phone-led AI glasses demonstration
At MWC 2026, MediaTek publicly presented its “Dimensity AI Omni Experience on Glasses”: a phone-led architecture in which a connected Dimensity 9500 smartphone performs the AI computation while lightweight eyewear provides the wearable interaction endpoint. MediaTek states that the on-device Omni model supports text, image, speech and video interaction, with responsive operation and processing kept between personal devices.
K900-derived customer build
Camera, audio and wearable interaction endpoint in a customer-specific hardware configuration.
Dimensity 9500 smartphone
MediaTek's public demo description says the connected smartphone handled all AI compute.
Omni multimodal model
On-device processing for text, image, speech and video interaction within the demonstration.
Compute stays on the Dimensity 9500 smartphone rather than inside the eyewear.
MediaTek highlights low-latency interaction, offline responsiveness and privacy-enhancing processing between personal devices.
The demonstrated eyewear was derived from K900, with customer-specific design and integration—not the catalog reference SKU.
Source hierarchy
Official MediaTek sources substantiate the demo architecture. SmartXY project records substantiate the wearable hardware provenance.
MediaTek's public materials describe the demonstration architecture and do not identify SmartXY, K900 or the customer by name. The K900-derived identification above is SmartXY's statement based on its project records. This demonstration does not constitute MediaTek certification, endorsement or co-branding. The standard K900 reference platform uses MediaTek MT6765; the Dimensity 9500 compute described here ran on the connected demonstration smartphone. MediaTek and Dimensity are trademarks of MediaTek Inc.

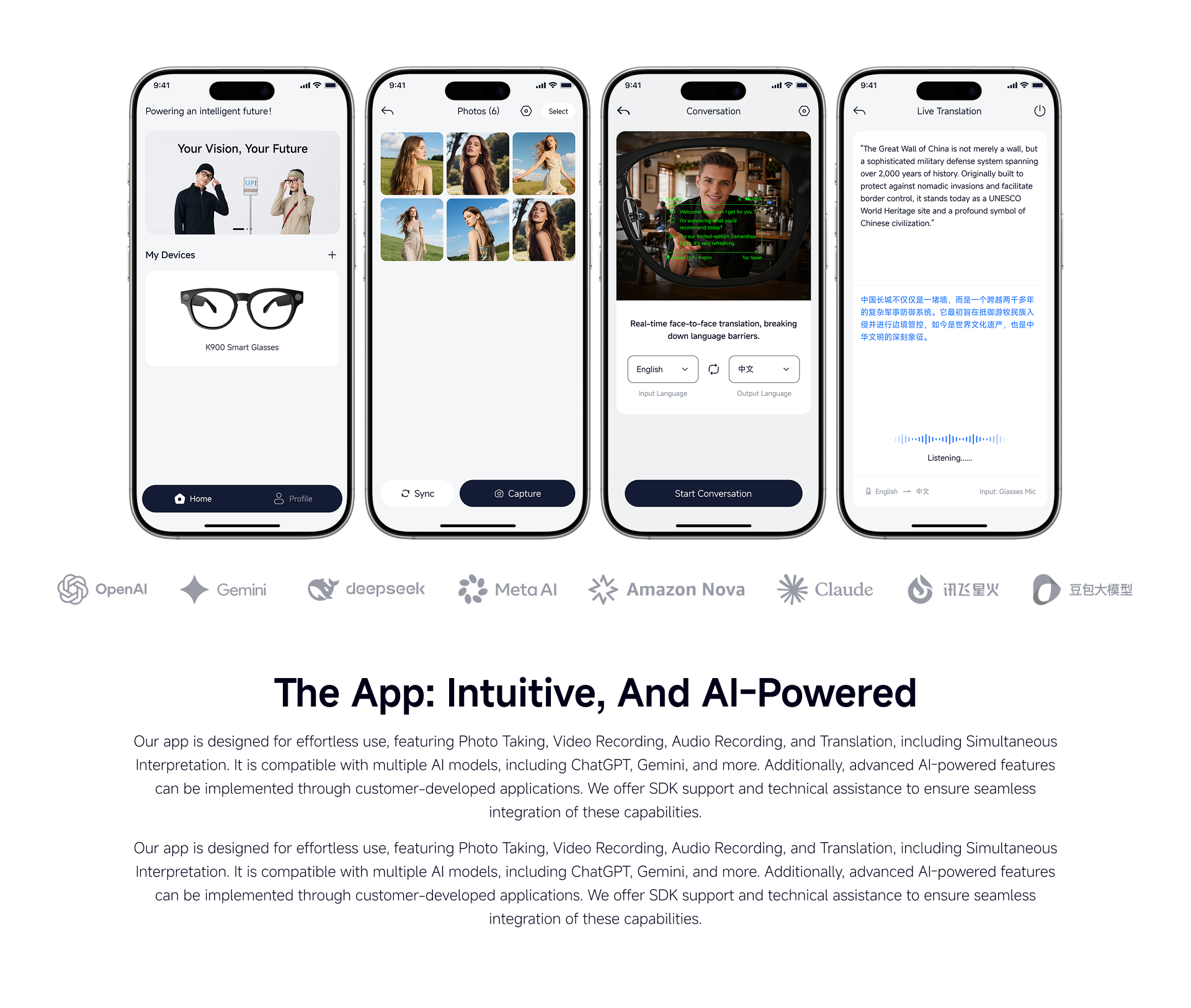

BRANDABLE PHONE-SIDE EXPERIENCE
A companion experience your customers can understand at a glance.
The reference concept below shows how a partner app can connect K900, review first-person field captures, organize device media and hand selected content to optional AI workflows. It is an original SmartXY concept—not a customer app screenshot.
Capture first.
Decide what happens next.
K900 keeps the camera and open-ear interaction on the wearer. The companion app becomes the control point for media, livestreaming sessions, device settings and partner-defined AI services.
FIELD CAPTURELIVESTREAMINGMEDIA LIBRARYAI HANDOFFPARTNER BRANDING
01
Field media stays understandable
Review inspection photos, POV video and spoken notes in one phone-side library with clear device context.
02
AI starts with user intent
Select a capture before sending it into translation, transcription or a custom workflow.
03
The experience can become yours
Brand, navigation, permissions and service integrations are defined with each partner program.
Illustrative interface · not a released customer application · features vary by program
K900 COMPANION
WorkspaceMy K900
CONNECTED72%
Industrial field capturesVIEW ALL →
32 GB DEVICE LIBRARY
58%
- 01 · CAPTURE●
Stay in the moment
Use K900 as the first-person camera-and-audio endpoint for photos, recorded video and partner-defined livestreaming workflows.
- 02 · REVIEW▦
See what was captured
Present device media in a clear phone-side library for selection and review.
- 03 · CONTROL◎
Keep the user in charge
Partner-defined controls can cover synchronization, export, deletion and device settings.
- 04 · EXTEND✦
Add the right AI
Connect selected content to project-specific transcription, translation or assistant workflows.
Reference UI.K900 has no in-lens display. Industrial scenes illustrate possible POV documentation workflows only and do not represent safety certification or suitability as PPE. Final app branding, permissions, media behavior, data flow and AI services are specified and validated for each partner program.
04 · PRODUCT STORY
Engineering and experience, up close
A compact hardware stack for camera, audio and companion-app workflows — with partner-facing SDK/API support and no in-lens AR display.

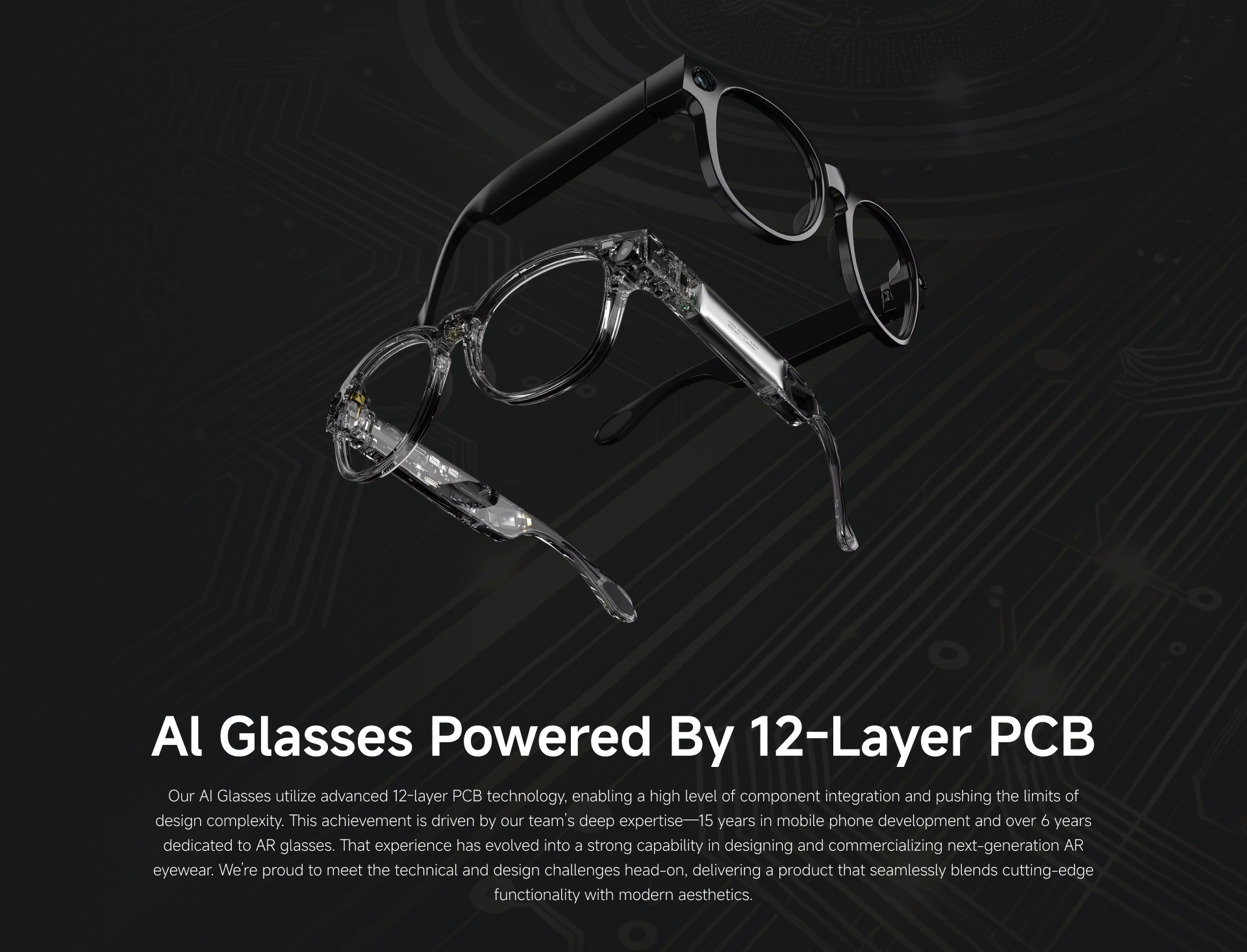

High-density frame integration
A 12-layer PCB architecture packages camera, audio, connectivity and controls into a sub-40 g eyewear platform.

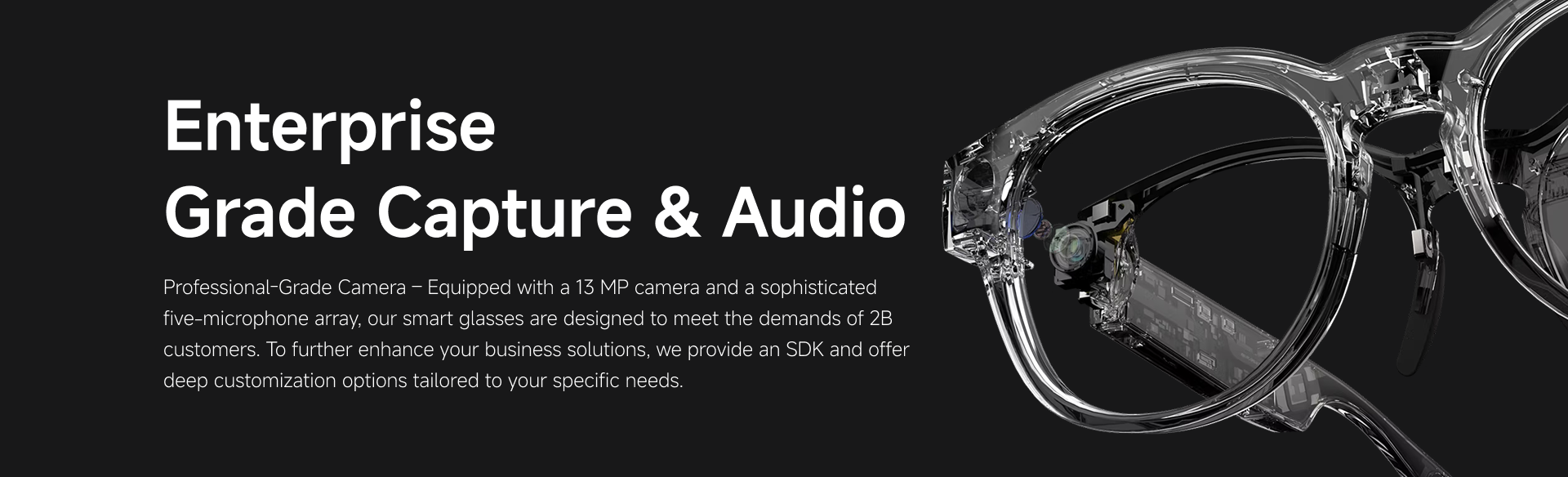

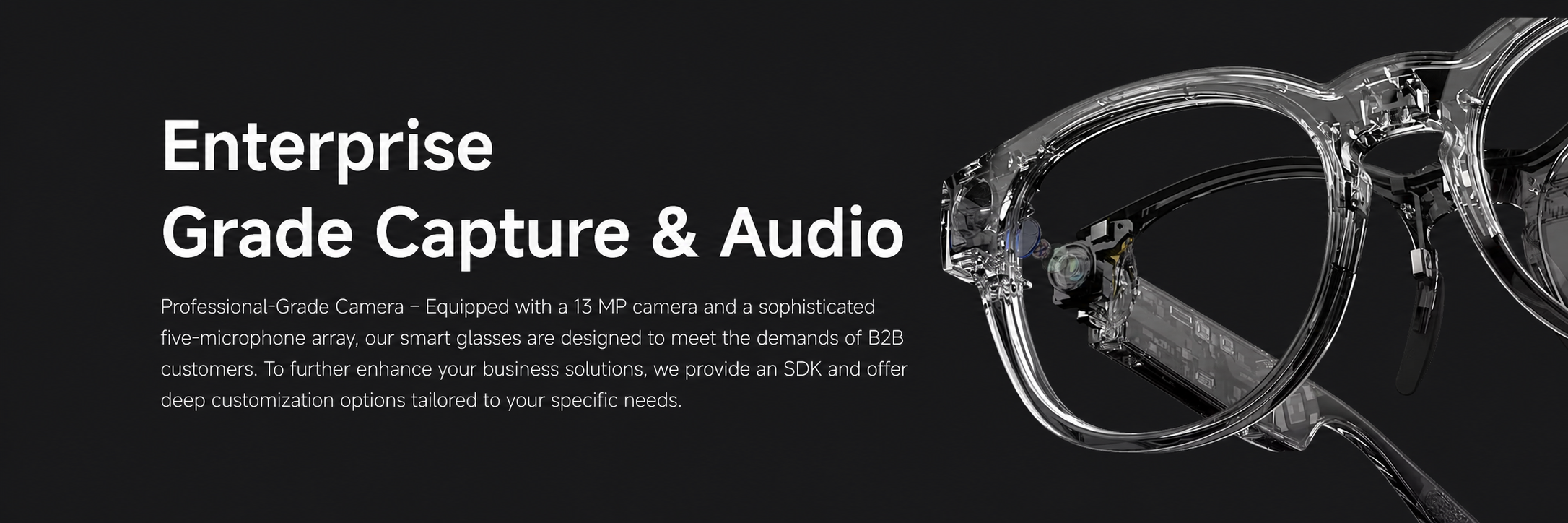

Capture and open-ear audio
13 MP first-person capture, a five-microphone array and stereo speakers support field, documentation and assistant workflows.
Companion app and SDK/API
Media sync, translation and partner AI services run through the phone app. K900 is camera-and-audio eyewear; it has no in-lens display.
05 · SPECIFICATION SHEET

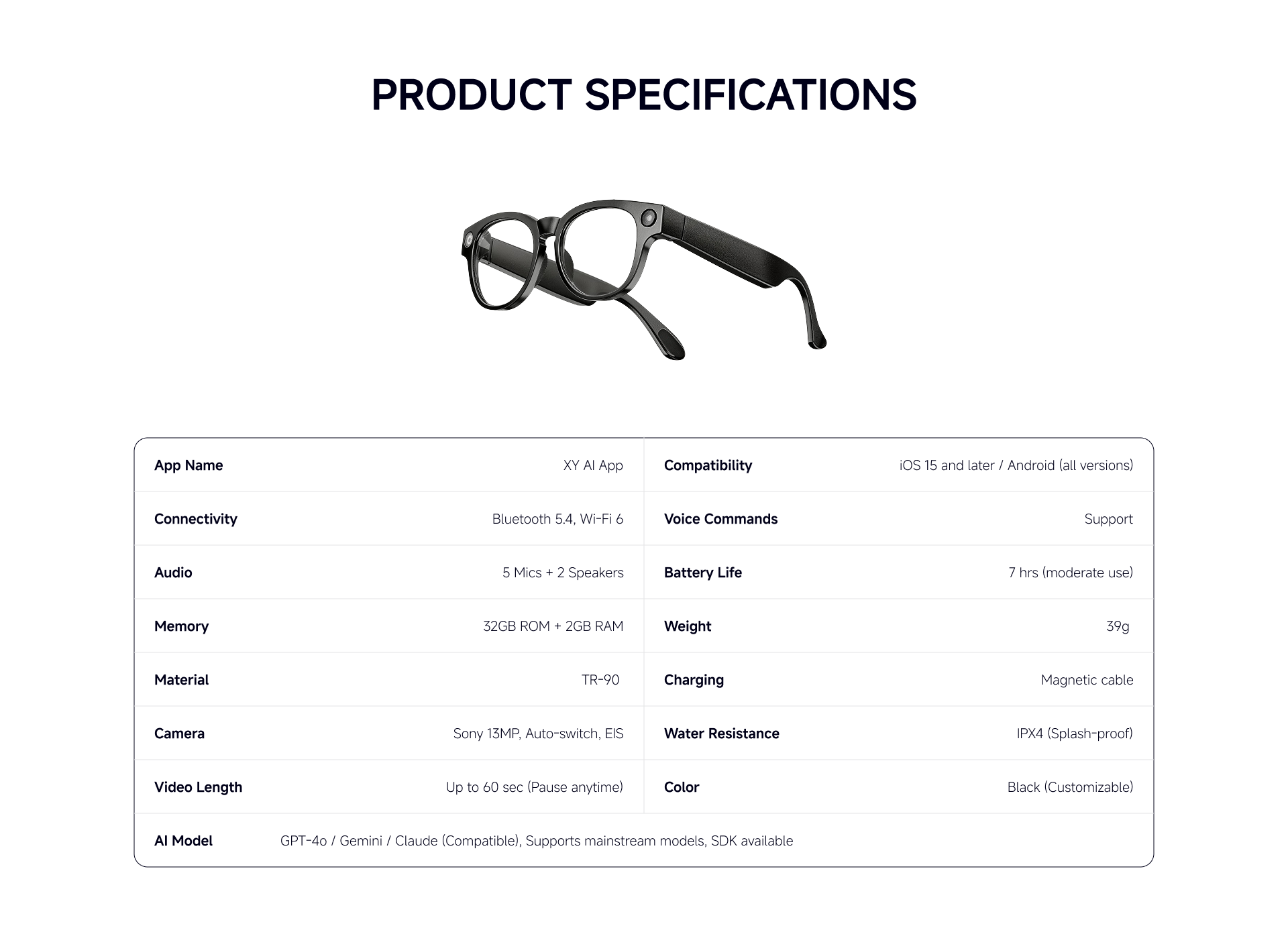

K900 technical specifications
SUB-40G · ODM-READY · ENGINEERED IN SHENZHEN
PROCESSOR & MEMORY
- Android SoC
- MediaTek MT6765 · 12nm
- Audio / BT SoC
- Bestechnic BES2700H
- Memory
- 2 GB RAM + 32 GB ROM
- Operating system
- Android 11
IMAGING & AUDIO
- Camera sensor
- Sony IMX258 · 13 MP
- Video
- 1080p @ 30fps · EIS · HDR
- Livestreaming
- Real-time video + audio over the internet · partner app / service integration
- Microphones
- 5-mic array · adaptive ANC
- Speakers
- Stereo dual · AAC 0820
- Privacy LED
- White · hardware-linked
POWER & CONNECTIVITY
- Battery
- 270 mAh Li-Polymer
- Music playback
- 8-10 hours
- Video recording
- 55 minutes continuous video recording
- Mixed use
- 7–8 hours typical
- Fast charge
- 10 min → 50% · 30 min → 95%
- Wi-Fi / BT
- Wi-Fi 6 (2.4 GHz) · Bluetooth 5.4
- USB
- Type-C · pogo-pin
PHYSICAL & COMPLIANCE
- Dimensions
- 154 × 163 × 51 mm
- Weight
- 39 g
- Frame material
- Acetate / TR90 / Titanium
- Certifications
- CE · FCC · RoHS
- MP readiness
- EVT / DVT / PVT completed · MP-ready
K900 has no AR display. Battery figures are platform reference values measured under lab conditions; real-world results vary with usage profile, volume and temperature.
06 · CUSTOMER SUCCESS STORY
From AI camera platform to industrial smart glasses — shipping in the thousands
An enterprise AI software company (identity confidential) needed a differentiated smart glasses product without an 18–24-month from-scratch hardware program. They built on the K900 platform — designing their own ID, mechanical architecture and charging dock — and reached commercial launch with thousands of units in production.
SMARTXY PLATFORM · REUSED
- →K900 AI camera core — 13MP / 1080p POV capture, 5-mic AI audio, dual speakers
- →Hardware-linked recording LED · privacy-first architecture
- →EVT → DVT → PVT → MP engineering & supply chain
CUSTOMER-OWNED · DIFFERENTIATED
- →New industrial design — customer-owned frame identity for their vertical
- →New mechanical architecture and lens system
- →Custom charging dock + their own AI software experience
0→MP
No from-scratch hardware program
1000s
Units in production & shipping
1080p
Platform POV capture
B2B
Ongoing enterprise deployment
07 · HOW WE WORK TOGETHER
Three engagement models, one MP-ready platform
Every K900 program runs through SmartXY's IPD + Agile delivery governance — requirement freeze, ID/MD freeze, EVT/DVT/PVT gates, certification planning and MP readiness review. Typical timeline: ODM 6–9 months, JDM 9–14 months from concept to mass production.
OEM
Build-to-Print
Your design + your spec. SmartXY handles structural engineering, sourcing and mass production.
ODM
Catalog Customization
The pre-validated K900 platform from our open-mold library + your branding, colors and UI.
JDM
Joint Development
Co-development from concept to MP with a shared IP framework. Strategic partners only.
01
ID Design
Concept · 3D · CMF
02
Mech Structure
Stack-up · IP · Hinge
03
HW + SW Dev
Schematic · Driver · App
04
Prototyping
CNC · 3D print · Tooling
05
Test & Cert
BQB · FCC · CE · SRRC
06
Manufacturing
SMT · Assembly · QC
08 · FAQ
Frequently asked questions
Is K900 an AR-display product?
No. K900 has no AR display. It is an AI camera + open-ear audio platform and should not be mixed with SmartXY's AR display products (AR99, C100).
Does K900 support livestreaming?
Yes. K900 supports livestreaming workflows that transmit real-time video and audio over the internet to an audience. Availability and final behavior depend on network conditions, the partner application and the configured streaming service.
What is the AI architecture?
Local device capture, audio and connectivity, plus cloud-assisted AI assistant or AI agent integration through partner apps and mainstream AI services. The stack is LLM-agnostic with cloud + on-device dual-mode and third-party model loading.
How customizable is the platform?
ID/CMF, frame materials (acetate / TR90 / titanium), mechanical architecture, charging ecosystem and companion software are all customizable through OEM, ODM or JDM engagement. A K900-derived enterprise program has already shipped thousands of units.
Is K900 production-ready?
Yes. EVT, DVT and PVT phases are completed — K900 is an MP-ready platform with CE, FCC and RoHS certification, delivered through SmartXY's IPD + Agile gated workflow.
Where should SDK and app requests go?
Product-specific SDK, app download and local app development requests route through the RFQ form so we can provide software and compliance context for your region.
SHIP IN THE 2026–2027 BRAND WINDOW
Build your AI glasses on a production-proven platform
Brands that begin platform development in 2026 ship branded SKUs in 2027. K900 is MP-ready today — SDK, sample units and program scoping start with one request.
