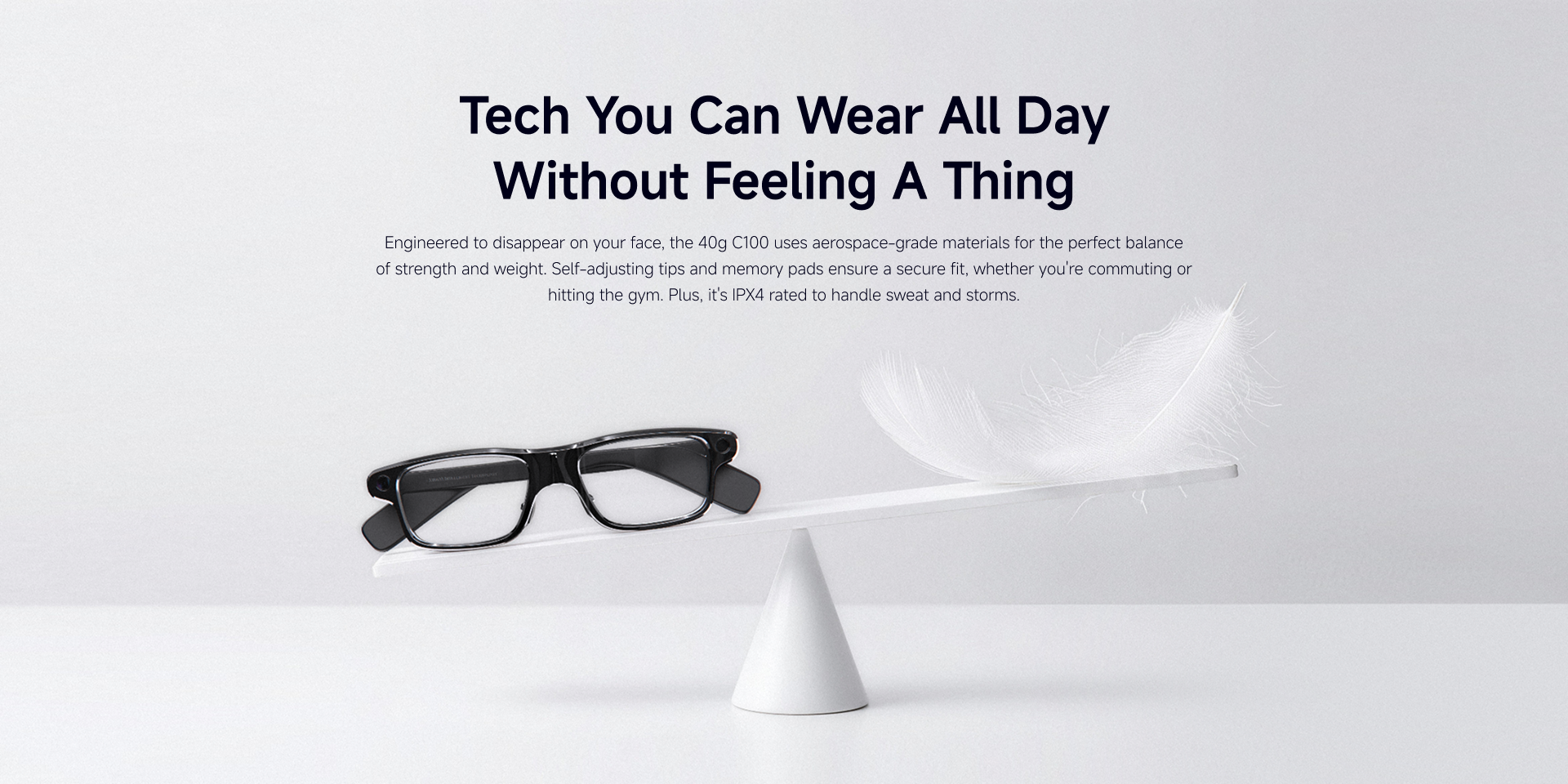

Premium Material Build
TR90 + magnesium-lithium frame with titanium liquid-metal hinges — industrial-grade durability in an everyday eyewear body.
Camera + AR Flagship
C100 — Camera + AR Flagship Platform
C100 is the flagship Camera + AR platform in the SmartXY portfolio, built for programs that need image capture, AI processing and see-through AR display in one configurable eyewear platform.
A high-end platform for brands that need camera capture, AR display, AI interaction and hot-swappable power in a single smart-eyewear product line.
Featured
Flagship Platform- Camera + AR flagshipCombines capture, display and AI interaction in one platform for premium smart-eyewear projects.
- Enterprise-ready visual AISuitable for hands-free imaging, real-time assistance, documentation and task guidance workflows.
- Hot-swappable power systemBuilt for longer operating sessions with replaceable battery logic and MiniBag charging-case support.
- OEM/ODM platform flexibilityGives partners room to tune camera, AR, AI software and industrial design around a flagship product brief.
B+C-End Flagship · AI + AR
C100 — B+C Flagship AI + AR Platform
C100 is SmartXY's B+C flagship AI + AR platform — designed for enterprise productivity, developer customization, and premium consumer-brand adaptation.
Micro-LED Light Engine
0.15-inch Micro-LED engine at 1,500 nits in-eye brightness, 26° diagonal FOV, single-green dual-eye glass waveguide.

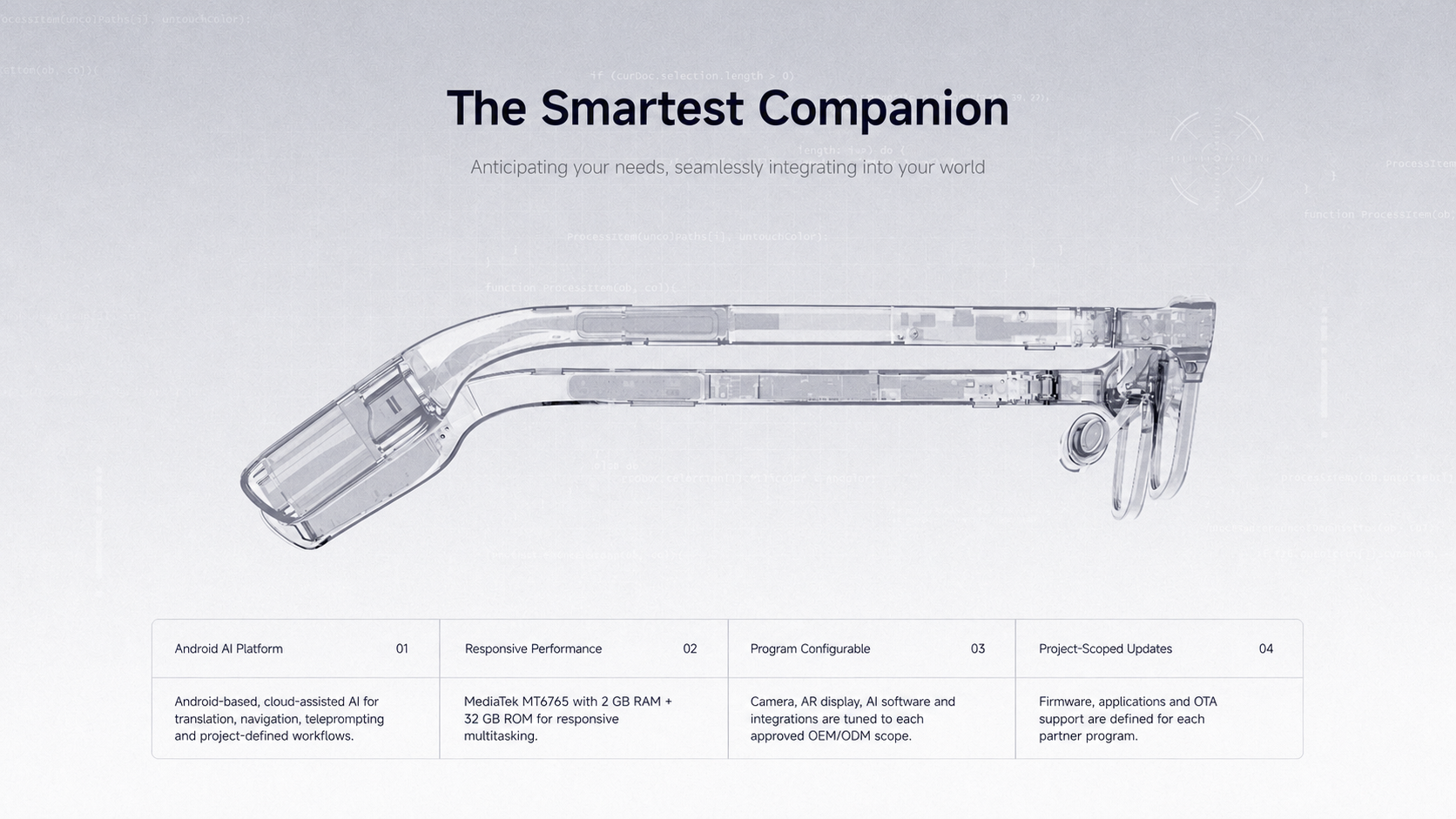

Android AI Platform
MediaTek MT6765 + Android, designed for cloud-assisted visual AI and partner app integration.
21MP Capture Module
First-person photo and HD video capture, paired with a 4-mic + bone-conduction audio system with active noise reduction.
Connectivity Stack
Bluetooth 5.3 dual-mode plus Wi-Fi 5 with 2.4G/5G dual-band for stable phone, cloud and enterprise-system links.
Hot-Swap Power System
270mAh per swap plus a 1400mAh MiniBag charging case — uninterrupted, never-out-of-power operation.
Why it matters: B-end medical, government, and ESG validation feed C-end product DNA. C100 is what happens when industrial-grade engineering meets daily wearable design.
Natural Interaction
Control without thinking
Swipe, speak, or simply put the glasses on. C100 supports touch, voice and head-tilt input for fast hands-free control.
Touch & swipeDirect temple controls
Voice controlHands-free commands
Head-tilt activationQuick gesture input

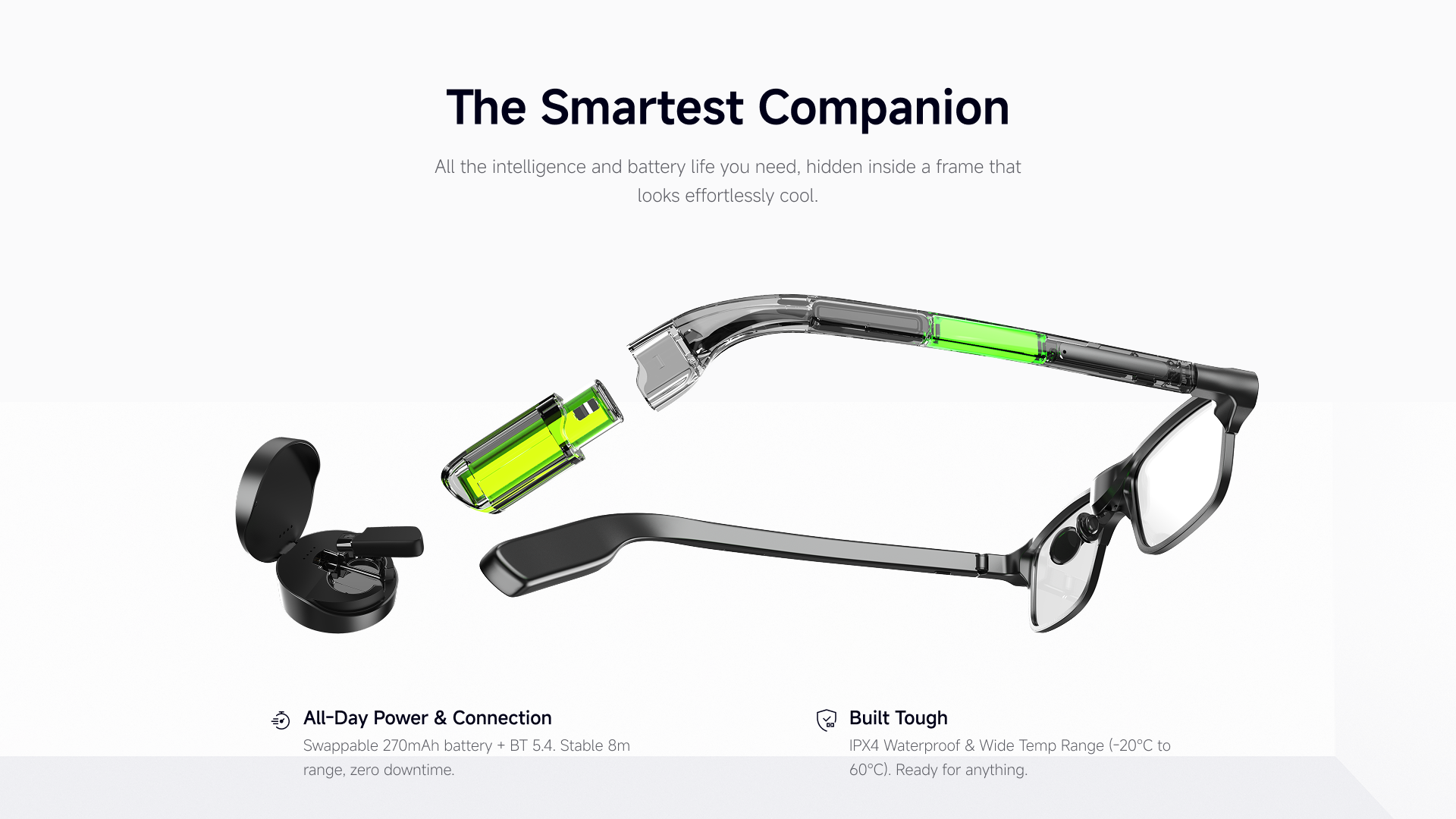

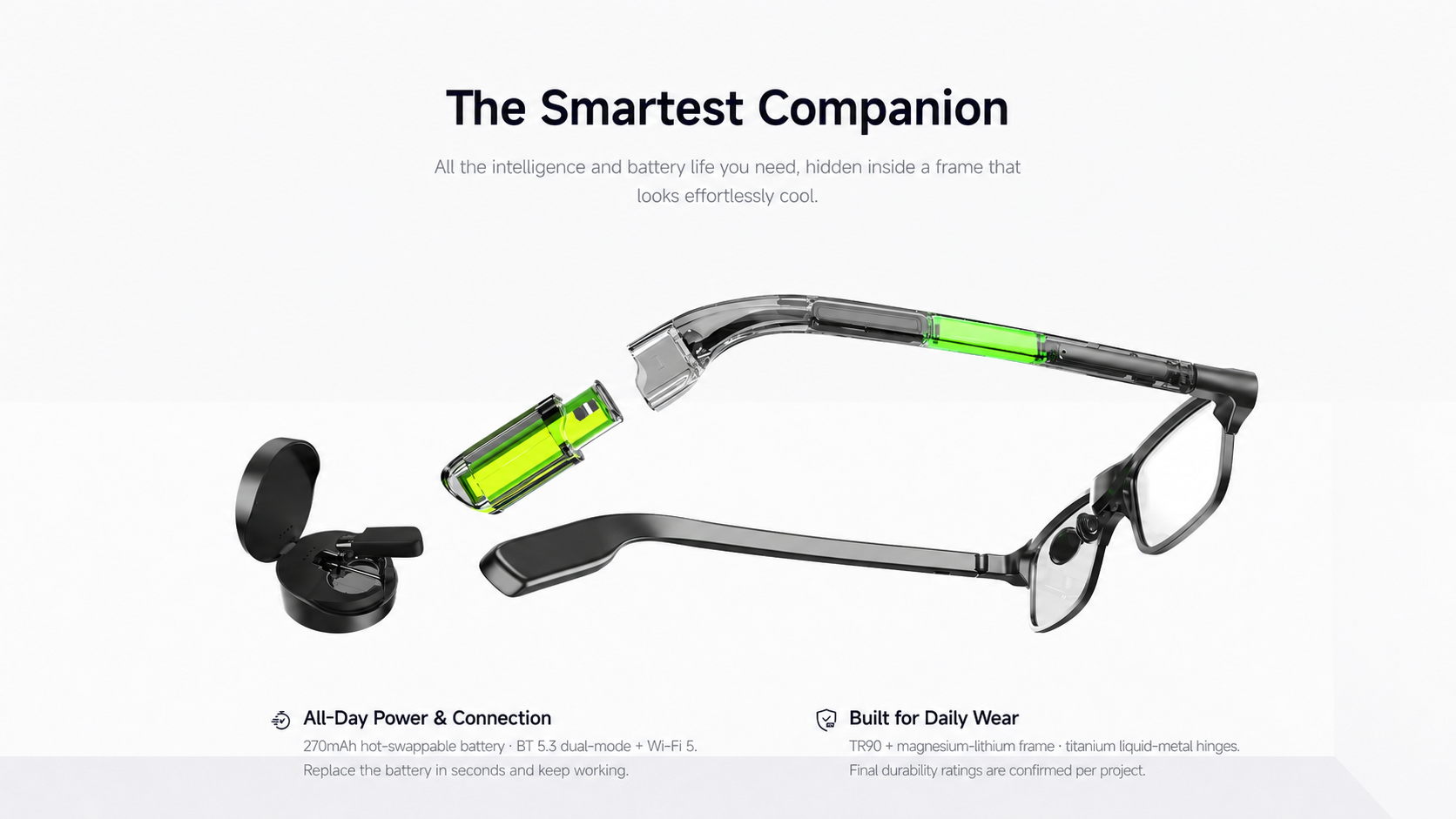

Swap System
Never-Out-of-Power
A hot-swappable battery architecture backed by the MiniBag charging case keeps C100 running through full working sessions — swap in seconds, keep going.
270mAhPer hot-swap battery270-300 mAh hot-swappable cell, replaced in seconds without powering down.
1400mAhMiniBag charging caseBuilt-in charging case keeps spare batteries topped up on the move.
25hStandby with swapContinuous standby across battery swaps for all-day availability.
2.5hSingle-battery runtime2.5h general use or 0.5h continuous video per battery.
270mAh hot-swap · 25h standby · Never-out-of-power

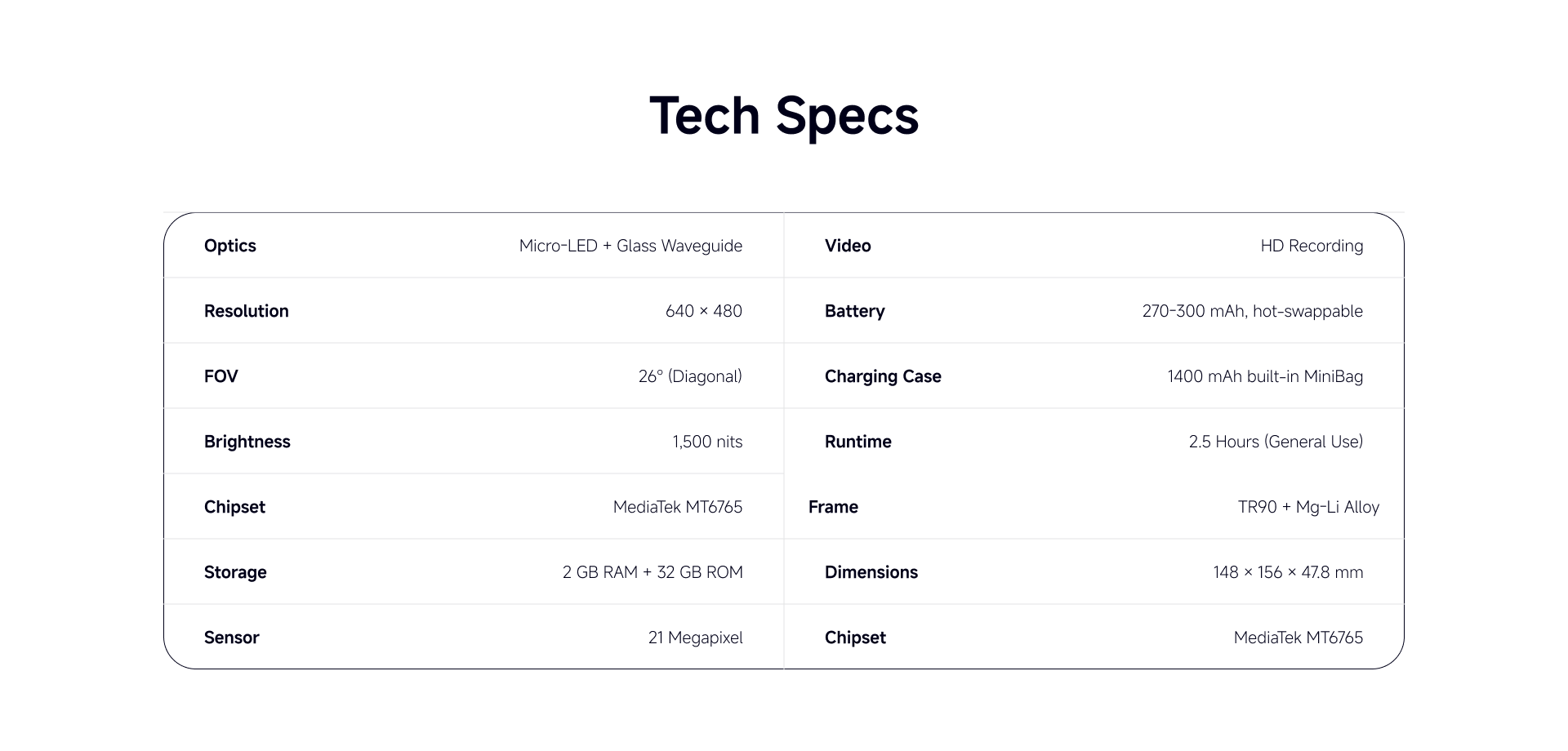

Specification Sheet
C100 Technical Specifications
Android-based AI smart glasses with hot-swap battery, Micro-LED display, and 21MP capture — OEM/ODM-ready, with EVT validation completed and later gates scoped by project.
- Optics
- Micro-LED + Glass Waveguide
- Resolution
- 640 × 480
- FOV
- 26° (Diagonal)
- Brightness
- 1,500 nits
- Chipset
- MediaTek MT6765
- Storage
- 2 GB RAM + 32 GB ROM
- Sensor
- 21 MP
- Video
- HD Recording
- Battery
- 270-300 mAh, hot-swappable
- Charging Case
- 1400 mAh built-in MiniBag
- Runtime
- 2.5 Hours (General Use)
- Frame
- TR90 + Mg-Li Alloy
- Dimensions
- 148 × 156 × 47.8 mm
- Connectivity
- BT 5.3 dual-mode + Wi-Fi 5
Positioning: C100 is the B+C flagship of the SmartXY platform — built for enterprise productivity, developer customization, and premium consumer-brand adaptation.
Real Hardware · Real Team
Engineered in Shenzhen
Behind the product: a Shenzhen-based engineering team, in-house Swap System development, and an EVT-validated reference platform — the foundation of each C100 program.
Swap System Hardware
In-house designed dual-battery + 1400mAh charging case, prepared for project-specific DVT, PVT and mass-production gates.
Founder-Led Engineering
CEO-driven product DNA: hardware-first culture, hands-on team in Shenzhen.
EVT-Validated Build
C100 + MiniBag reference system with EVT validation completed; DVT, PVT and MP readiness are completed to each approved project scope.
Illustrative Application Scenarios
C100 application scenarios: captured context and glanceable guidance
C100 combines first-person capture, a see-through display and cloud-assisted partner-app integration. The concepts below show how approved programs can configure contextual visual assistance, language support, route or status prompts and documentation workflows.
01 · Photo & Video
First-person capture
Capture photos or video for documentation, sharing or everyday moments, subject to partner-app controls and local privacy and consent requirements.
02 · AI Object Lookup
Contextual visual assistance
A partner application can send camera context to connected AI services for questions about products, food, plants, buildings or other everyday objects.
03 · Real-Time Translation
Translated captions in view
Connected language services can return translated speech or captions to the display for presentations, travel and cross-language communication.
04 · Navigation
Glanceable route prompts
A partner application can present concise route or status cues while the wearer keeps primary attention on the surrounding environment.
05 · Conversation
Conversation translation
Paired applications and cloud services can support multilingual travel or business conversations with short prompts and translated text in view.
Concept visuals only. Interface, AI output, language coverage, latency and availability depend on the approved partner application, connected service, network, target market and project scope. Camera use must follow local privacy, consent and safety requirements.
OEM / ODM Partnership
Built by a real, hands-on team in Shenzhen
Not white-labelled, not outsourced. OEM/ODM partners get direct access to engineering, mold ownership, and full BOM transparency — from EVT through mass production.
Answer Engine Summary
C100 is SmartXY's Camera + AR flagship platform with 21MP capture, Micro-LED glass waveguide display, 26-degree diagonal FOV, MediaTek MT6765 chipset, 270-300 mAh hot-swappable battery and 1400 mAh MiniBag charging-case support.
FAQ
What camera spec is listed for C100? 21MP.
Where do integration requests go? Use the SmartXY RFQ form.
